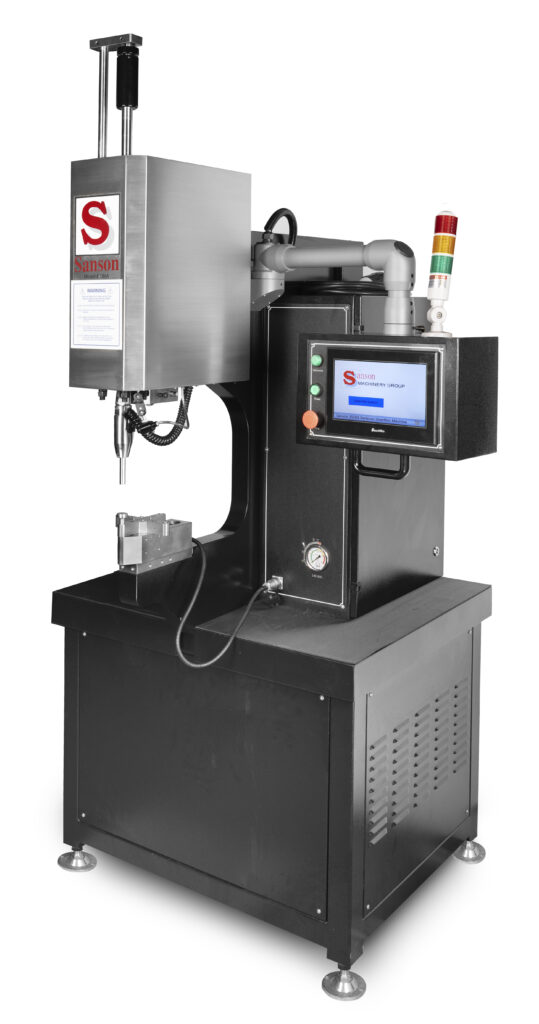

Sanson Insertion Press Model 186A

Sanson Insertion Press Model 186A

Product Brochure:
SANSON 186A

SKU: 186A Category:

Description

Specification:
Force Range 500 – 12,825 Lbs.

Throat Depth 17.71”

Throat Height 15.74”

Stroke Length 0-7.87” Adjustable

Electrical Current 220V, 3 Phase, 60Hz.

Power 4A

Motor HP 2HP

Repeatability ±2% of Force Setting

Safety Device Yes

Speed Up to 1200 insertion per hour

Fastener Range M10 Nut M8 Stud M6 S/0 Carbon Steel

Hydraulic Oil DTE26

Oil Tank Capacity 16 Gallons

Air Pressure 1-100 PSI

Dimensions 36” Wide X 43” Length X 78” Height

Weight 1,433 Lbs.
